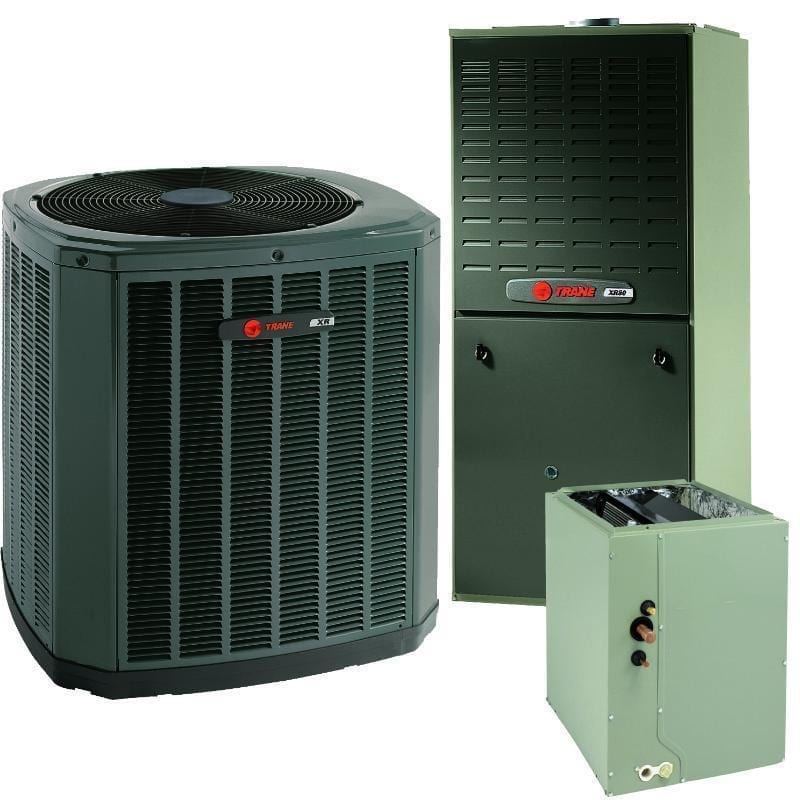

(1) Trane 5 Ton 18 SEER2 XV18 60000 BTUh V/S Communicating AC Condenser 4TTV8X60A1000, (2) Trane 100000 BTUh 80% AFUE XC80 V/S Gas Furnace TUD2C100ACV52 & (3) Trane 3-5 Ton 60000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCC009DS3HC.
Trane 5 Ton 18 SEER2 55000 BTUh Split System Variable Speed 80% AFUE Communicating Gas System is one of the best-bundled HVAC systems for home heating and air conditioning needs. This variable speed communicating system consists of 3 major HVAC components – (1) Trane 5 Ton 18 SEER2 XV18 60000 BTUh V/S Communicating AC Condenser 4TTV8X60A1000, (2) Trane 100000 BTUh 80% AFUE XC80 V/S Gas Furnace TUD2C100ACV52 & (3) Trane 3-5 Ton 60000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCC009DS3HC.
By running at the exact speed needed to keep your home comfortable, Trane’s TruComfort™ systems give you precise comfort. It allows your variable speed compressor, indoor fan, and outdoor fan to vary operating speed and BTU as the temperature outside changes, speeding up or slowing down gradually in as little as 1/10 of one percent increments to keep comfort within 1/2° of the thermostat setting.
When matched with the communicating indoor units, the ComfortLink™ II Communicating Technology will be available to connect all of your HVAC components automatically and configures or calibrates for maximum efficiency and performance for years to come.
With 18 SEER2 rating, this variable speed air conditioning system is capable of automatically adjusting itself while ensuring consistent speed to avoid any temperature swings.
The whole HVAC system works silently. You won’t even notice if it’s operating or not.
This 5 Ton Communicating HVAC system was rigorously tested and tortured to ensure it holds itself even in the toughest situation.
By adding Trane CleanEffects™ to your HVAC system, you can ensure a filtration system that doesn’t allow pollen, dust, and other unwanted particles inside your home, thus ensuring healthy, fresh, and clean airflow inside your home.
Trane 5 Ton 18 SEER2 V/S Gas System | |
Nominal Capacity | 5 Ton |
SEER2 Rating | 18 SEER2 |
EER2 Rating | 12 EER2 (11.7 SEER2) |
Capacity | 55000 BTUh |
Stages | Variable Stage |
Outdoor AC Condenser Unit | Trane 4TTV8X60A1000 |
Indoor Gas Furnace Unit | Trane TUD2C100ACV52 |
Cased Coil Unit | Trane 4TXCC009DS3HC |
AHRI Reference | 208443261 |
Trane 5 Ton XV18 Series 60000 BTUh 4TTV8X60A1000 unit is an 18 SEER2 outdoor Variable Speed Air Conditioner Condenser that ensures your HVAC needs are taken care of. And since this AC system has an 18 SEER2 rating, it’s safe to claim that it’s an extremely cost-efficient unit. To ensure healthy, fresh, and clean airflow, Trane’s AC condenser unit can be integrated with their premium CleanEffects™ air filtration technology. This premium air filtration system removes dust, dirt, and pollen from your home. Besides, Trane’s 5 Ton unit is equipped with an advanced Climatuff Scroll Compressor. Trane’s efficient Climatuff Scroll compressor unit only allows quiet operation, while Trane’s Spine Fin Coil increases the efficiency of the air conditioner unit.
Also, to keep the internal components protected, this 5 Ton 18 SEER2 AC Unit 4TTV8X60A1000 has full-slide louvered panels. This 5 Ton Air Conditioning condenser unit has DuraTuff base pan and Weatherguard fasteners. They affect the corrosion & rust resistance factor of this 18 SEER2 outdoor AC condenser unit.
AC Condenser Specifications | |
Brand | Trane |
Series | XV18 Series |
Model | 4TTV8X60A1000 |
Ton | 5 Ton |
Fan Speed | Variable Speed |
Fan Stage | Variable Stage |
Capacity | 60000 BTUh |
SEER2 Rating | 18 SEER2 |
Minimum Circuity Ampacity | 27 Amp |
Breaker Circuit Prot. Rtg. (Max) | 40 Amp |
Voltage | 230/208 Volts |
Phase | 1 |
Frequency | 60 Hz |
Dimension | 45” x 37” x 34” |
Liquid Line Connection | 3/8” |
Gas Line Connection | 1-1/8″ |
ENERGY STAR® qualified | Yes |

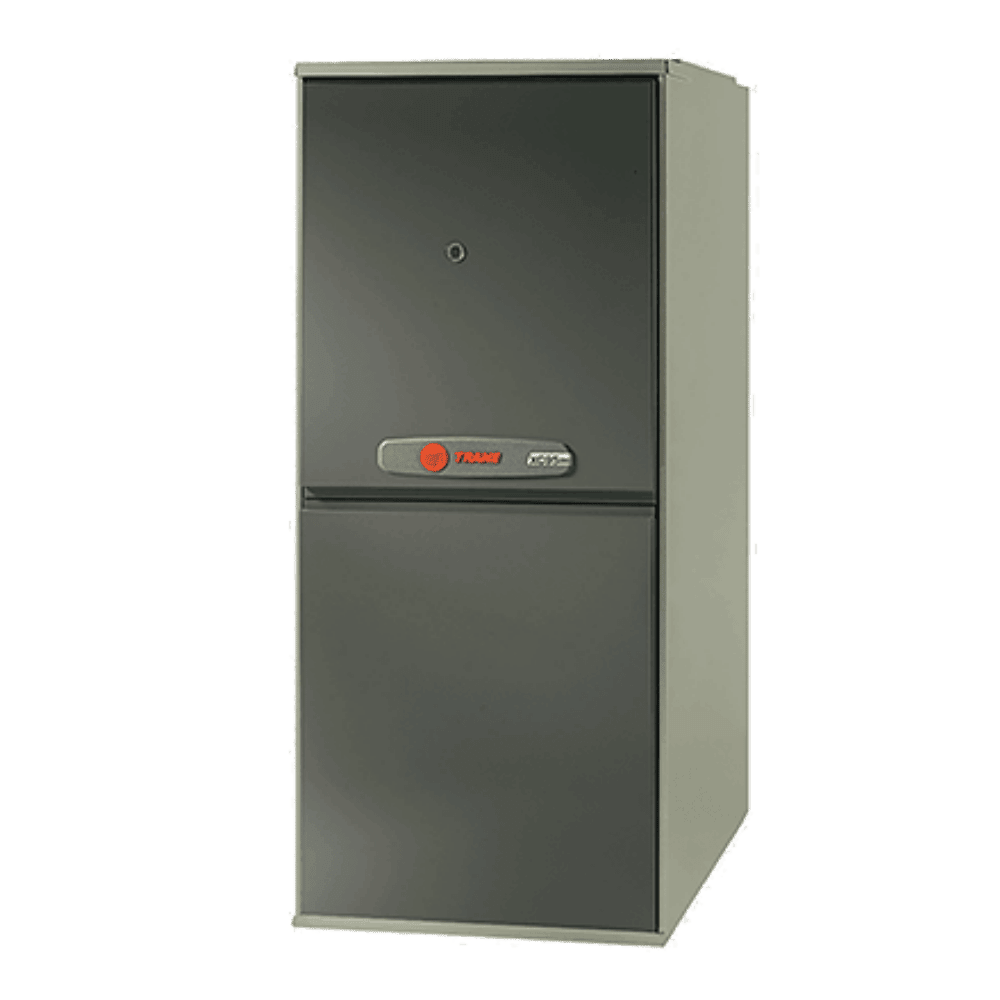

As an efficient gas furnace unit, Trane XC80 series 100000 BTUh 80% AFUE Two Stage Upflow/Horizontal Gas Furnace TUD2C100ACV52 is an excellent solution from Trane. Like other Gas Furnaces from Trane’s XC80 series, this 100000 BTUh heating system comes with a Silicon Nitride Hot Surface igniter that ensures reliable ignition for years of its lifetime. Besides, the heavy steel insulated cabinet of this Trane heating unit ensures integrity while keeping the operating noise in control. And yes, its high-efficiency Vortica® II Blower will also help reduce noise exertion.
Also, the Multi-Port In-Shot Burner makes the flame cones perfectly, providing increased efficiency as the 80% 100000 BTUh unit uses minimum fuel to produce maximum heat. Along with its efficiency in heat exchange and consistent airflow, its Aluminized Steel Heat Exchanger is capable of withstanding extremely high temperatures. Besides, the exchanger helps keep the corrosion and rust away.
Gas Furnace Specifications | |
Brand | Trane |
Series | XC80 Series |
Model | TUD2C100ACV52 |
Heating Capacity | 100000 BTUh |
AFUE | 80% AFUE |
Heating Stage | Two Stage |
Fan Speed | Variable Speed |
Dimension | 40” x 21” x 28” |

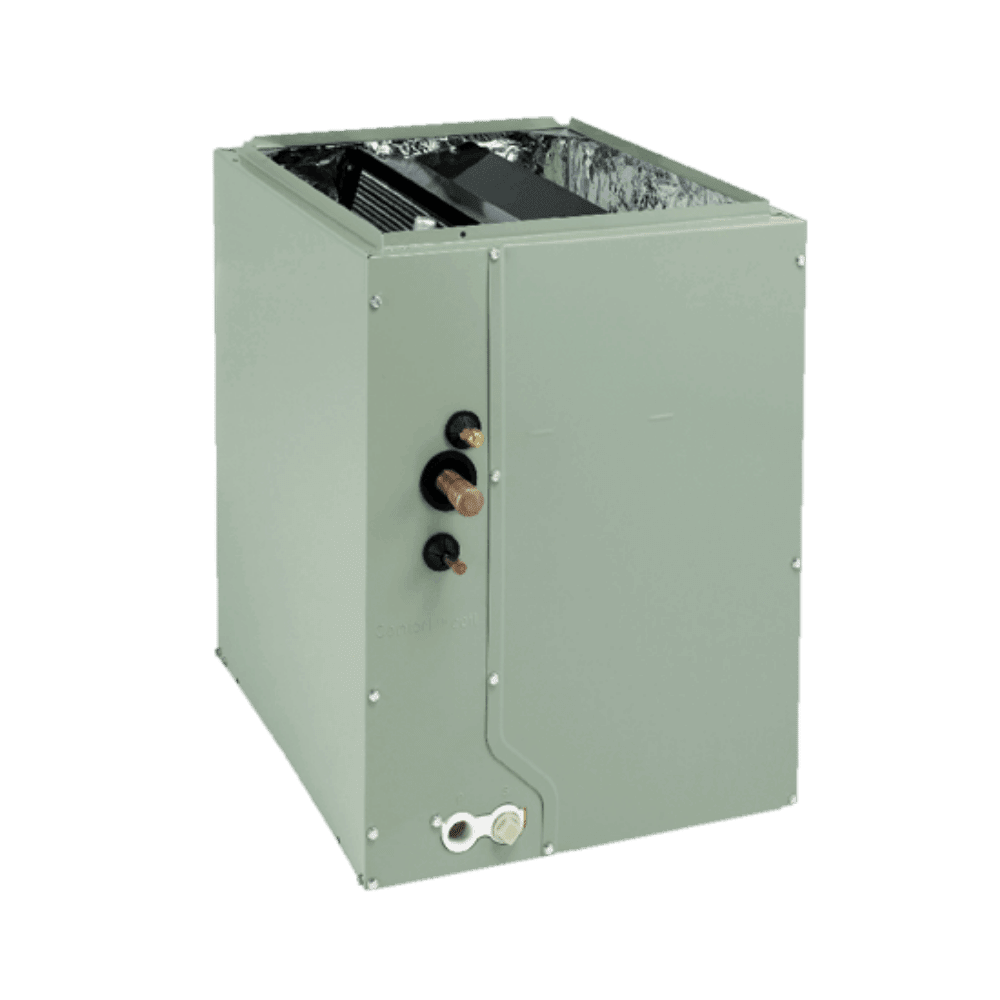

Trane 5 Ton 60000 BTUh 4TXC Cased Coil 4TXCC009DS3HC has the all-aluminum Comfort™ coil from Trane. To ensure minimum leaks and durability, this cased coil unit has been tried several times. Besides, Trane’s 5 Ton 60000 BTUh coil is made from high-quality material. So, you can easily assume how durable and reliable they are for long-term use. Besides, Trane 5 Ton 4TXCC009DS3HC Comfort™ Coil is very easy to clean.
Also, the 60000 BTUh 4TXC cased coil from Trane is equipped with 100% foil-backed insulation. While this efficient insulation allows quiet operation, its 2-way noncorrosive drain pan prevents water from sitting. Lastly, this 5 Ton cased coil is covered with a durable coating. This premium coating protects this 5 Ton cased coil unit from rust or corrosion.
Cased Coil Specifications | |
Brand | Trane |
Series | 4TXC Series |
Model | 4TXCC009DS3HC |
Tonnage | 3-5 Ton |
Capacity | 60000 BTUh |
Configuration | Downflow/Horizontal Left/Horizontal Right/Upflow |
