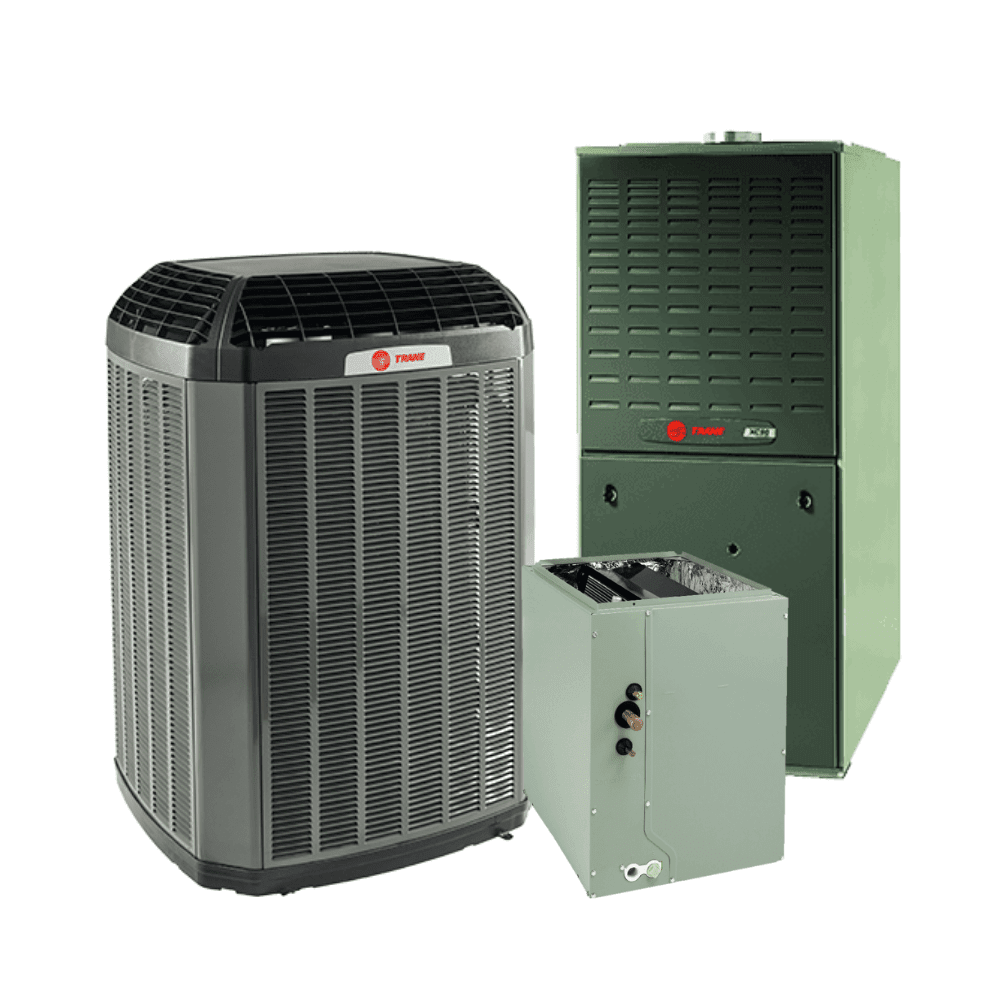

Trane 5 Ton 17 SEER2 56000 BTUh Two Stage 80% Gas System | XL17i Series 60000 BTUh Air Conditioner Condenser | XV80 100000 BTUh Gas Furnace | 4TXC 60000 BTUh Cased Coil |R-410a Refrigerant | Install Included
Trane 5 Ton 17 SEER2 Two Stage Gas System is one of their most expensive systems, but it is undoubtedly a beast in performance and efficiency. It includes:
(1) Trane 5 Ton 17.2 SEER2 XL17i 60000 BTUh 2-Stage AC Condenser 4TTX7060E1000, (2) Trane 100000 BTUh 80% AFUE XV80 2-Stage Gas Furnace TUD2C100A9V5V & (3) Trane 3-5 Ton 60000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCC009DS3HC.
| Trane 5 Ton 17 SEER2 2-Stage Gas System |
| Nominal Capacity | 5 Ton |
| SEER2 Rating | 17 SEER2 (15.2 SEER2) |
| EER2 Rating | 12 EER2 (11.2 EER2) |
| Capacity | 56000 BTUh |
| Stages | Two Stage |
| Outdoor AC Condenser Unit | Trane 4TTX7060E1000 |
| Indoor Gas Furnace Unit | Trane TUD2C100A9V5V |
| Cased Coil Unit | Trane 4TXCC009DS3HC |
| AHRI Reference | 208775523 |
1. Trane 5 Ton 17.2 SEER2 XL17i 60000 BTUh Two-Stage Air Conditioner Condenser 4TTX7060E1000
The condenser operates on two stages of cooling and is built with durable material that undergoes rigorous testing to ensure long-lasting performance. Additionally, you have the option of improving the air that circulates through your home by adding Trance Clean Effects to the central unit, which has the ability to remove dust and other impurities from the air.
- Quick-Sess Cabinet with full coil protection
- Weatherguard Fasteners for protection against corrosion
- Full-Side Louvered Panels for Durability
- Non-Corrosive DuraTuff Base Pan for protection
- Variable-speed fan motor for precision and comfort
- Systems Extreme Environmental Test or SEET tested to ensure overall durability
- All-aluminum made Spine Fin coil for outdoor use
- Baked-on coating of powder for longevity
- WeatherGuard II Top to ensure outdoor protection from elements
- Energy Star qualified unit, ensuring yearly 44% energy cost
- Unique mount-down shaft fan motor for better performance
- Climatuff Scroll Compressor for cost-efficiency and quiet operation
- Add-on CleanEffects® Whole Air Home Cleaner filters dirt, dust, and other contaminants
| AC Condenser Specifications |
| Brand | Trane |
| Series | XL17i Series |
| Model | 4TTX7060E1000 |
| Ton | 5 Ton |
| Stage | Two Stage |
| Capacity | 60000 BTUh |
| SEER2 Rating | 17.2 SEER2 |
| Minimum Circuity Ampacity | 35 Amp |
| Breaker Circuit Prot. Rtg. (Max) | 60 Amp |
| Voltage | 230/208 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Dimension | 52” x 37” x 34” |
| Liquid Line Connection | 3/8” |
| Gas Line Connection | 1-1/8″ |
| ENERGY STAR® qualified | Yes |
2. Trane 100000 BTUh 80% AFUE XV80 Two-Stage Gas Furnace TUD2C100A9V5V
The heating also operates on the two stages, allowing it to efficiently provide heating for the air while maintaining consistency. Much like the condenser, the furnace is also made with top-quality, durable materials that have been tested to their limits.
- Tubular Heat Exchanger for efficient heat exchange
- Multi-Port In-Shot Burners Shape up the flame cone properly to ensure less fuel consumption
- Silicon Nitride Hot Surface Igniter that provides a reliable ignition system to extend
- Self-diagnostic microelectronic controller for reliable operation
- 24-Volt fuse for control protection
- Insulated cabinet for quiet operation
- Pre-painted galvanized steel cabinet for protection against corrosion
- Variable Speed blower motor for super-efficient air flow & circulation
- Heavy Steel Insulated Cabinet for durability
- Two-Stage gas heating for indoor comfort
| Gas Furnace Specifications |
| Brand | Trane |
| Series | XV80 Series |
| Model | TUD2C100A9V5V |
| Heating Capacity | 100000 BTUh |
| AFUE | 80% AFUE |
| Stages | Two Stage |
| Dimension | 40” x 21” x 28” |

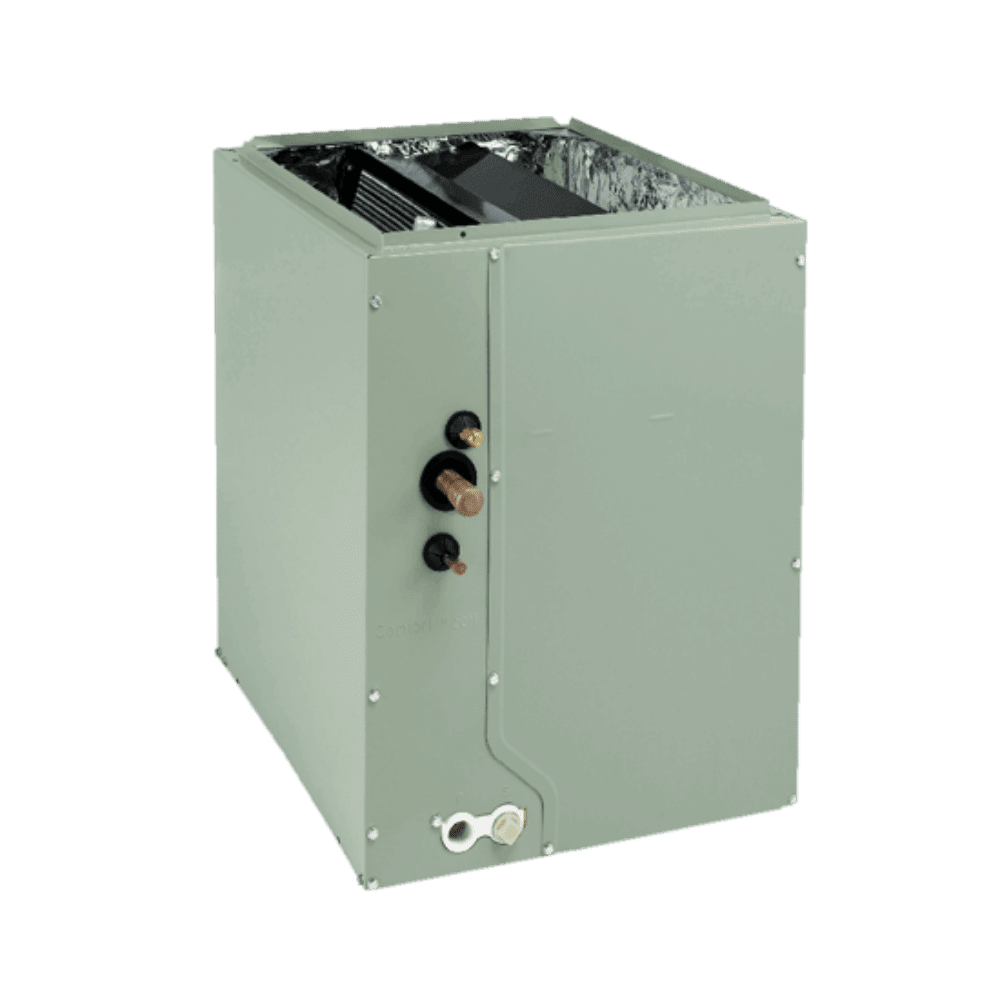

3. Trane 3-5 Ton 60000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCC009DS3HC
The cased coil is the final piece in the puzzle and brings it all together into a perfectly matched system with a high 17 SEER2 rating to boast the system’s efficiency. The cased coil is also made up of durable materials that are tested under pressure and a Helium spectrometer. This ensures that the coil is leak-free and can cause no losses in efficiency.
- Resistance against Rust & corrosion
- All-aluminum Comfort™ coil for avoiding leaks
- A 2-way noncorrosive drain pan
- A 100% foil-backed insulation that allows quiet operation
- A durable external finish that protects the unit from corrosion & rust
- Easy-to-clean built
| Cased Coil Specifications |
| Brand | Trane |
| Series | 4TXC Series |
| Model | 4TXCC009DS3HC |
| Tonnage | 3-5 Ton |
| Capacity | 60000 BTUh |
| Configuration | Downflow/Horizontal Left/Horizontal Right/Upflow |
Five things this 5 Ton Gas System has to offer
1. High SEER Rating
To start off, the Trane system boasts a very high SEER2 rating of 17. This means that the air conditioner is very efficient at what it does and goes well in accordance with Trane’s reputation for efficient products. In addition to this, the 17-SEER2 rating means that the air conditioner also provides better cooling than its competitors with lower SEER ratings.
2. Two-Stage Operation
An air conditioner, much like a car, uses a lot of energy stopping and starting up again. However, this problem is overcome by employing a two-stage air conditioner, like the Trane 5 Ton 17 SEER2, along with its variable fan speeds. This should allow you to use the air conditioner for extended periods of time, that is, keep it running longer and more often but with a lower setting. As a result of this, the efficiency and effectiveness of its cooling are boosted by a substantial eighty percent.
3. No Hot or Cold Spots
As a result of longer running times, hot and cold spots in the home are completely eliminated, and the environment is a well-mixed even temperature throughout.
4. Less Moisture
Moreover, the longer running time also helps remove more moisture from the air, thereby decreasing the humidity greatly.
5. Saving on Costs
Because this pack is a full-matched SEER2 17-rated system, your wallet should be safe from extraneous bills from the running cost of the air conditioner. A fully matched system works at its maximum efficiency and enables optimal performance.
