Trane 5 Ton 15.2 SEER2 Heat Pump System, 3-5 Ton 36000-60000 BTU Air Handler, Electric Heater, R-454B Heat Pump System [with Install]

Overview of Trane 5 Ton 15.2 SEER2 Heat Pump System, 3-5 Ton 36000-60000 BTU Air Handler, Electric Heater, R-454B Heat Pump System

Trane 5 Ton 15.2 SEER2 (≈15.0 SEER2) Heat Pump System is a complete Trane 5 ton heat pump system designed for reliable whole-home heating and cooling performance. This heat pump system combines a high-efficiency 60000 BTU single-stage heat pump, a matched variable speed air handler, and a 20 kW electric heater kit to deliver balanced comfort in every season. Built as a Trane heat pump and air handler package system, it is ideal for homeowners looking to buy a Trane 5 ton heat pump system or shop a complete heat pump system with installation-ready compatibility and long-term durability. Whether you are upgrading an existing HVAC setup or planning a new install, this Trane 5 ton heat pump package unit offers consistent airflow, energy-efficient operation, and dependable temperature control across your entire home.

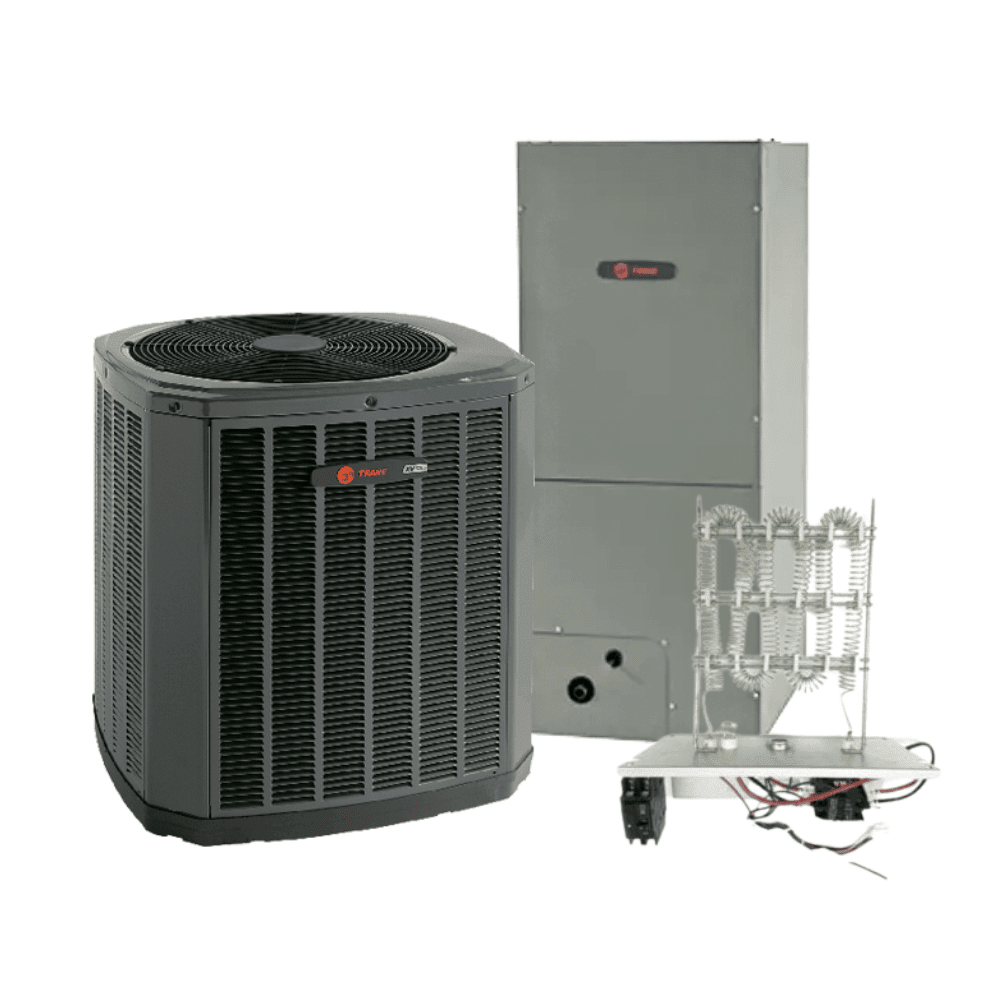

Trane 5 Ton 15.2 SEER2 (≈15.0 SEER2) Heat Pump System includes:
(1) Trane 5 Ton 15.2 SEER2 (≈14.3-16 SEER2) 60000 BTU Single-Stage Heat Pump 5TWR5060A1000,
(2) Trane 3-5 Ton 36000-60000 BTU Variable Speed Air Handler 5TEM6D06AV41S &
(3) Trane 14.4–19.2 kW (20 kW) 49200–65600 BTU Single-Phase Electric Heater Kit BAYHTR1523BRK w/ Breaker.

System Specifications & Components

Brand	Trane
HVAC System Type	Heat Pump System
Tonnage	5 Tons
SEER Rating	15.2 SEER2 (≈15.0 SEER2)
BTU	60000 BTU
Heat Pump Unit	Trane 5TWR5060A1000
Air Handler Unit	Trane 5TEM6D06AV41S
Electric Heater Unit	Trane BAYHTR1523BRK

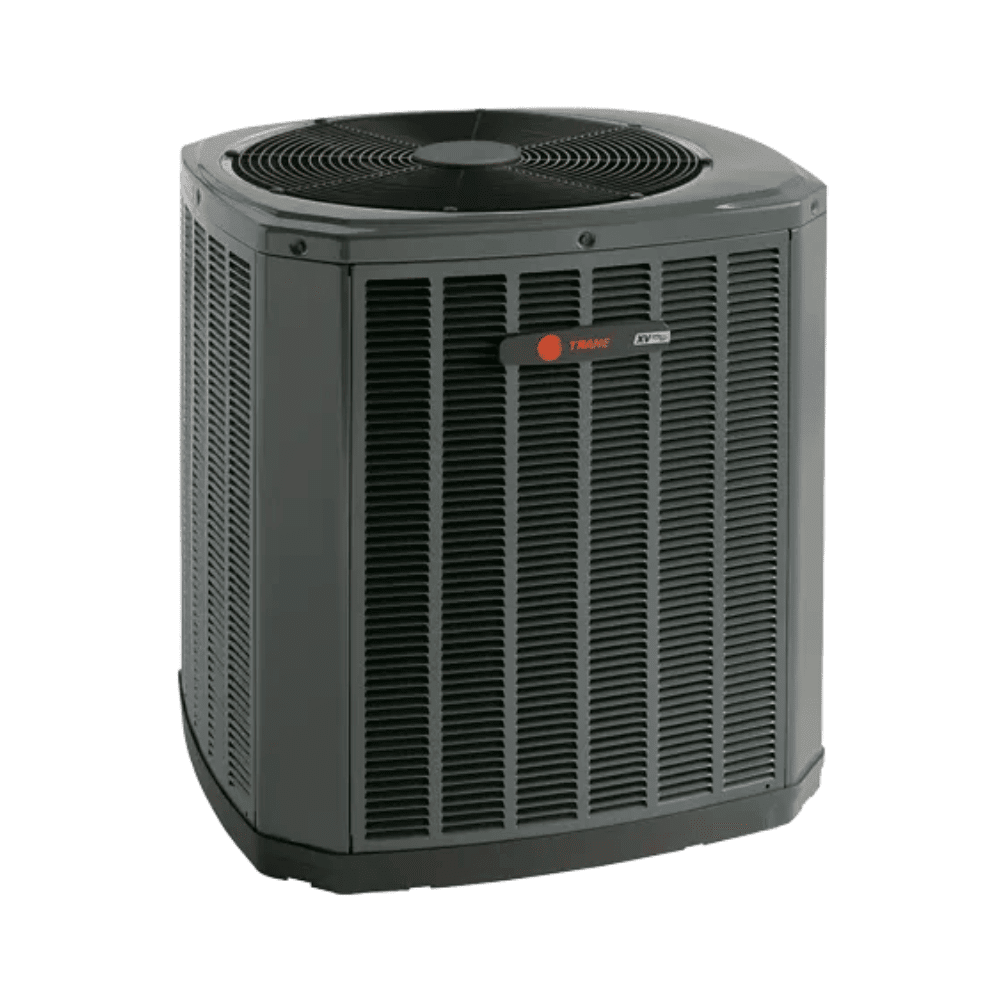

1. Trane 5 Ton 15.2 SEER2 Single-Stage Heat Pump 5TWR5060A1000

Trane 5 Ton 15.2 SEER2 Single-Stage Heat Pump 5TWR5060A1000 is a core part of a Trane 5 ton heat pump system built for reliable whole-home heating and cooling. It is often chosen by homeowners looking to buy a 5 ton heat pump system or shop a Trane heat pump system with installation-ready compatibility. It delivers consistent comfort and stable performance as part of a complete heat pump system.

Features of Trane 5 Ton 60000 BTU Single-Stage Heat Pump 5TWR5060A1000

1. Designed to deliver consistent whole-home heating and cooling performance for residential comfort.
2. SEER2-rated efficiency (15.2 SEER2 ≈ 15.0 SEER2) helps provide balanced energy savings and reliable operation.
3. Built with durable WeatherGuard™ construction elements for long-term outdoor protection.
4. Corrosion-resistant cabinet design helps extend system lifespan in varying weather conditions.
5. Full-sided protective louvered cabinet helps shield internal components while supporting steady airflow.
6. Single-stage compressor operation ensures consistent performance and dependable temperature control.
7. Rust-resistant basepan design helps reduce corrosion and improve long-term durability.
8. Standard electrical connection design supports straightforward installation with compatible Trane systems.
9. Powder-coated exterior finish provides added protection against environmental wear and corrosion.
10. Engineered fan system supports efficient airflow and quieter outdoor operation.
11. Reliable All-Aluminum Spine Fin™ Woven Coil improves overall heat transfer.
12. Designed for reliable operation with R-454B refrigerant compatibility in matched Trane systems.

Specifications of Trane 5 Ton 15.2 SEER2 Single-Stage Heat Pump 5TWR5060A1000

Brand	Trane
Nominal Tons	5 Ton
SEER Rating	15.2 SEER2
HSPF	9
Stages	Single Stage
Model Number	5TWR5060A1000
Series/Collection	XR17
BTU	60000 BTU
Coil	Spine Fin™
Compressor Type	Scroll
Power Source	Electric
Horsepower	1/4 HP
Refrigerant	R-454B
Amps	28.8, 152.9, 1.30, 37 A
Max. Fuse	60 A
Voltage	208/230V
Phase	Single
Connection Size (Gas)	1-1/8 Inch
Connection Size (Liquid)	3/8 Inch
Height	45.125 Inch
Width	37.25 Inch
Depth	34 Inch

2. Trane 3-5 Ton 15.2 SEER2 Variable Speed Air Handler 5TEM6D06AV41S

Trane 3-5 Ton 15.2 SEER2 Variable Speed Air Handler 5TEM6D06AV41S is a matched indoor unit designed for efficient airflow distribution in a Trane heat pump and air handler system. It supports a complete 5 ton Trane heat pump system and is commonly selected when homeowners want to buy a Trane heat pump and air handler package for consistent whole-home comfort.

This unit supports a complete 5 ton Trane heat pump system with stable airflow and flexible installation options.

Features of Trane 3-5 Ton 15.2 SEER2 Variable Speed Air Handler 5TEM6D06AV41S

1. Low voltage pigtail connection
2. Less than 2% air leak
3. All-Aluminium coil with a patented coil fin
4. Equipped with R-4.2 insulation valve
5. Multi position configuration: Upflow, Downflow, Horizontal Right & Left
6. Draw through design
7. Painted metal cabinet for longevity
8. Horizontal drain pan
9. Fused 24 V power

Specifications of Trane 3-5 Ton 15.2 SEER2 V/S Air Handler 5TEM6D06AV41S

Air Handler Specifications	Details
Nominal Capacity	3–5 Ton
Cooling Capacity	36000–60000 BTU
Indoor Coil Type	Plate Fin
Horsepower	3/4 HP
Air Handler Electrical Data	Details
Voltage	208-230 V
Phase	1
Frequency	60 Hz
F.L. Amps	6.8 A
Air Handler Dimensions	Details
Air Handler Height (Uncrated)	55.75 Inches
Air Handler Width (Uncrated)	23.5 Inches
Air Handler Depth (Uncrated)	21.125 Inches
Line Size – IN. O.D. Gas	7/8 Inches
Line Size – IN. O.D. Liquid	3/8 Inches
Air Handler Weight	Details
Air Handler Weight	174 Pounds
Shipping Weight	185 Pounds

3. Trane 14.4–19.2 kW (20 kW) Electric Heater BAYHTR1523BRK with Breaker

Trane BAYHTR1523BRK electric heater kit with breaker is designed to provide supplemental heating support for compatible Trane air handler systems in a Trane 5 ton heat pump system with electric heater kit setup. It is often included in a complete Trane heat pump system for homeowners looking to shop a full HVAC package with installation-ready components and reliable heating performance.

Details of Trane Electric Heater with Breaker BAYHTR1523BRK

1.       Single phase

2.       208 – 240 Voltage

3.       60 Hz frequency

4.       14.4 kW – 19.2 kW ≈ 20 kW

Specifications of 14.4–19.2 kW (20 kW) Electric Heater BAYHTR1523BRK with Breaker

Electric Heater Specifications	Details
Kilowatt	14.4 – 19.2 kW ≈ 20 kW
Capacity	9200–65600 BTU
Electric Heater Electric Data	Details
Voltage	208 – 240
Phase	1
Frequency	60 Hz
Electric Heater Weight	Details
Electric Heater Weight	11 Pounds (EA)

• Trane Smart Thermostat XL824 TCONT824AS52DB available for an additional cost.
