Trane 1.5 Ton 14.3 SEER2 Single-Stage AC System, 80% AFUE 40000 BTU Gas Furnace, Multi-Positional Coil, R-454B Gas System [with Install]

Trane 1.5 Ton 14.3 SEER2 Single-Stage AC System, 80% AFUE 40000 BTU Gas Furnace, Multi-Positional Coil, R-454B Gas System [with Install]

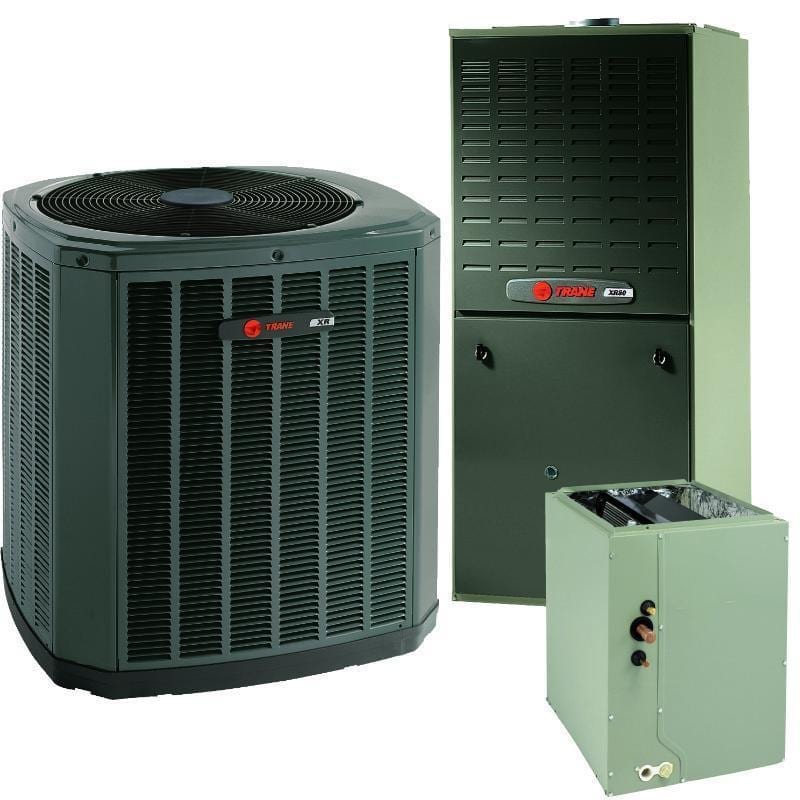

Trane 1.5 Ton 14.3 SEER2 HVAC System with Gas Furnace is a complete residential heating and cooling solution designed for reliable year-round comfort, energy efficiency, and long-term performance. This complete 1.5 ton split system combines a 14.3 SEER2 air conditioner condenser, an 80% AFUE 40000 BTU gas furnace, and a multi-positional cased coil to deliver balanced airflow, stable temperature control, and consistent indoor comfort.

Trane 1.5 Ton 14.3 SEER2 (≈14.3 SEER2) Single-Stage AC System includes:
(1) Trane 1.5 Ton 14.3 SEER2 (≈14.3 SEER2) Single-Stage 18000 BTU R-454B Air Conditioner Condenser 5TTR4018A1000,
(2)  Trane 40000 BTU S8X1 80% AFUE Single-Stage Gas Furnace S8X1B040M2PSC &
(3) Trane 1.5-2.5 Ton 18000-30000 BTU Downflow/Horizontal/Upflow R-454B Multi-Positional Cased Coil 5TXCB003AS3HC.

Specifications of Trane 1.5 Ton 14.3 SEER2 Single-Stage AC System
Nominal Capacity	1.5 Ton
SEER2 Rating	14.3 SEER2
EER2 Rating	11.7 EER2
Capacity	18000 BTU
Outdoor AC Condenser Unit	Trane 5TTR4018A1000
Indoor Gas Furnace Unit	Trane S8X1B040M2PSC
Cased Coil Unit	Trane 5TXCB003AS3HC
AHRI	210517677

1. Trane 1.5 Ton 14.3 SEER2 (≈14.3 SEER2) Single-Stage 18000 BTU R-454B Air Conditioner Condenser 5TTR4018A1000

The Trane 1.5 Ton 14.3 SEER2 air conditioner condenser delivers efficient residential cooling performance with quiet operation and strong long-term durability. As part of a matched Trane HVAC system, it works with indoor components to maintain stable comfort, energy efficiency, and consistent cooling performance throughout the home.

Features of Trane 1.5 Ton 14.3 SEER2 Single-Stage 18000 BTU R-454B AC Condenser 5TTR4018A1000

1. Quick-Sess Cabinet with Full Coil Protection
2. Full-Side Louvered Panels
3. Spine Fin Coil for efficient heat transfer
4. Premium Grey Finish for long-lasting durability
5. Corrosion-Resistant Weatherguard Fasteners
6. DuraTuff Non-Corrosive Base Pan for added protection
7. Heavy-duty construction built for long-term residential HVAC performance
8. Climatuff Scroll Compressor for quiet operation and energy-efficient cooling

Specifications of Trane 1.5 Ton 14.3 SEER2 Single-Stage R-454B AC Condenser 5TTR4018A1000

AC Condenser Specifications
Brand	Trane
Series	XR Series
Model	5TTR4018A1000
Capacity	18000 BTU
SEER2 Rating	14.3 SEER2 (≈14.3 SEER2)
Minimum Circuity Ampacity	13 Amp
Breaker Circuit Prot. Rtg. (Max)	20 Amp
Voltage	230/208 Volts
Phase	1
Frequency	60 Hz
Dimension	30.1” x 26.7” x 30”
Liquid Line Connection	3/8”
Gas Line Connection	3/4″
Weight	133 lbs.
ENERGY STAR® qualified	Yes

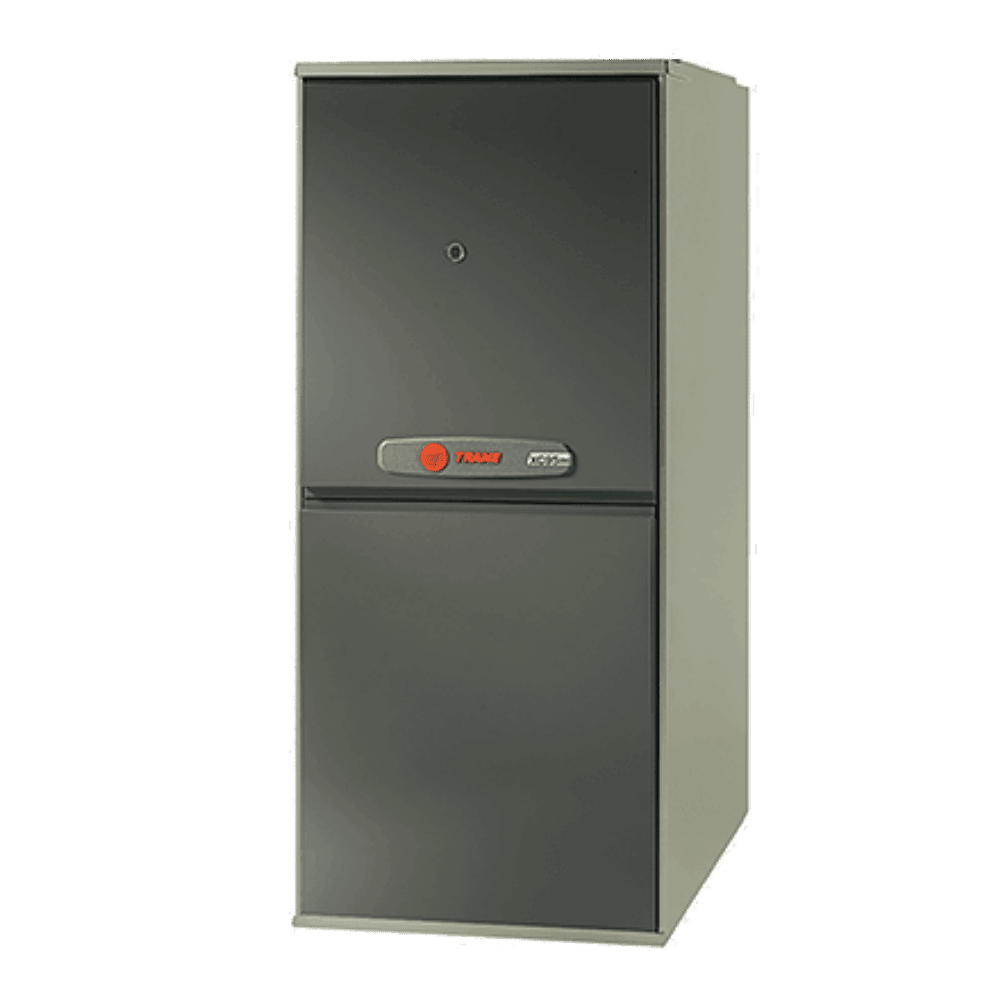

2. Trane 40000 BTU S8X1 80% AFUE Single-Stage Gas Furnace S8X1B040M2PSC

The Trane S8X1 40000 BTU gas furnace provides dependable heating performance as part of a residential Trane heating and cooling system. It delivers efficient fuel usage, quiet operation, and consistent warmth during colder seasons, making it a reliable choice for whole-home comfort.

Features of Trane S8X1 80% AFUE Single-Stage Gas Furnace S8X1B040M2PSC

1. Patented Vortica® II Blower works quietly while improving overall heating efficiency
2. High-efficiency Electronically Commutated Motor (ECM) helps reduce energy usage and operating cost
3. Silicon Nitride Hot Surface Igniter provides reliable ignition for consistent heating performance
4. Multi-Port In-Shot Burners shape the flame cone properly for efficient fuel combustion
5. Single-stage gas valve delivers consistent and reliable heating output
6. Aluminized Steel Heat Exchanger improves heat transfer and resists corrosion
7. Heavy steel insulated cabinet ensures durability and quiet operation
8. Formed steel door with smoked acrylic view window offers a clean and modern design

Specifications of Trane S8X1 80% AFUE Single-Stage Gas Furnace S8X1B040M2PSC

Gas Furnace Specifications
Brand	Trane
Series	S8X1
Model	S8X1B040M2PSC
Capacity	40000 BTU
AFUE	80%
Stages	Single Stage
Dimension	34” x 14.5” x 28.75”
Filter Size	14″ x 25″ x 1″
ENERGY STAR® qualified	No

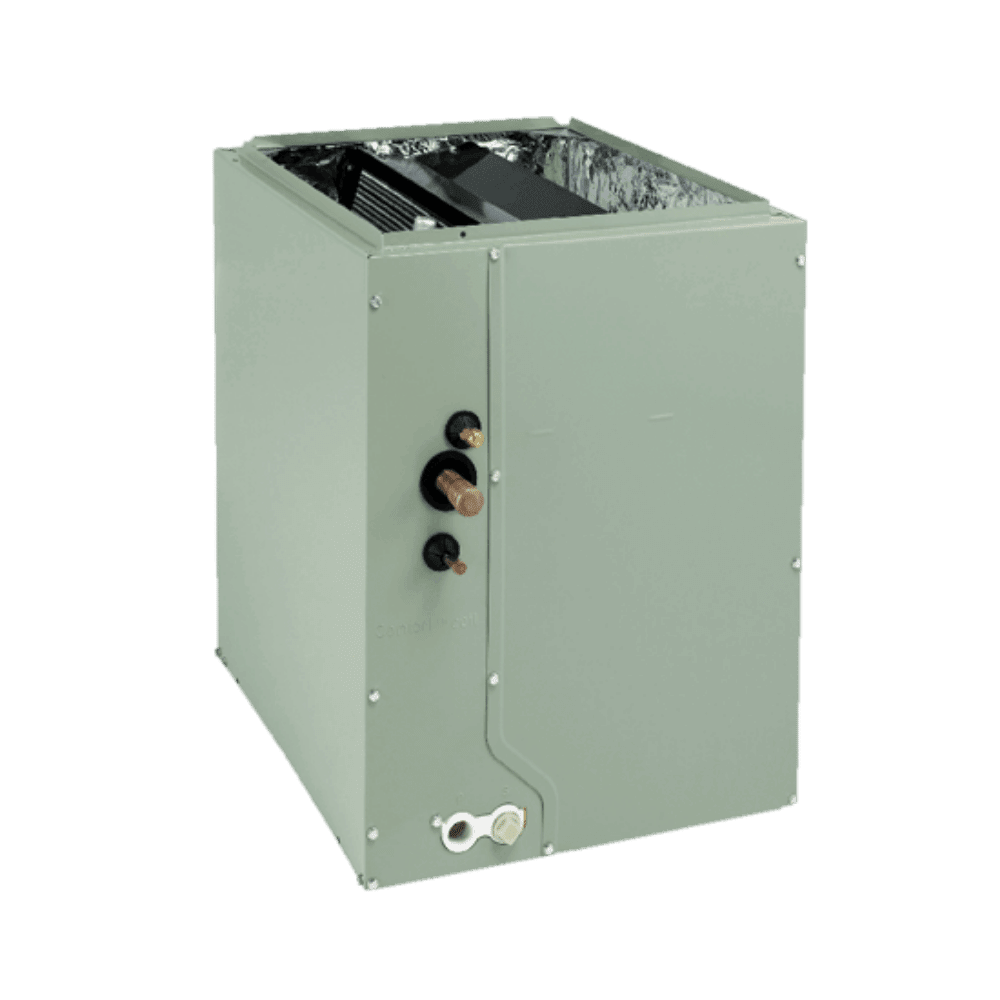

3. Trane 1.5-2.5 Ton 18000-30000 BTU Downflow/Horizontal/Upflow R-454B Multi-Positional Cased Coil 5TXCB003AS3HC

The Trane multi-positional cased coil is designed for installation flexibility and efficient airflow performance in a complete HVAC system. Its downflow, horizontal, and upflow configuration options make it suitable for different home layouts while supporting stable cooling performance and R-454B refrigerant compatibility. This flexibility helps ensure proper system matching and consistent comfort across varying installation conditions.

Features of Trane 1.5-2.5 Downflow/Horizontal/Upflow Multi-Positional Cased Coil 5TXCB003AS3HC

1. Comfort™ Coils are designed for easy cleaning and long-term HVAC performance
2. 100% foil-backed insulation supports quiet operation and improved efficiency
3. All-aluminum Comfort™ coil helps reduce refrigerant leaks and improves system reliability
4. Durable painted finish provides strong protection against corrosion and rust
5. Two-way noncorrosive drain pan prevents water accumulation for better efficiency
6. Rust and corrosion resistant construction for long-lasting residential HVAC use
7. Multi-positional design allows flexible installation (downflow, horizontal, and upflow applications)
8. Supports balanced airflow performance in matched Trane HVAC systems
9. Optimized for R-454B refrigerant compatibility in modern residential systems

Specifications of Trane 1.5-2.5 Ton R-454B Multi-Positional Cased Coil 5TXCB003AS3HC

Cased Coil Specifications
Brand	Trane
Series	5TXC
Model	5TXCB003AS3HC
Tonnage	1.5–2.5 Ton
Capacity	18000–30000 BTU
Configuration	Downflow/Horizontal Left/Horizontal Right/Upflow

Why Buy from Green Leaf Air?

Choosing Green Leaf Air means you can buy a complete HVAC solution built around properly matched Trane components, professional installation support, and a smooth end-to-end buying experience. Every residential Trane heating and cooling system is carefully prepared to ensure correct compatibility between the condenser, furnace, and coil for reliable long-term performance and balanced home comfort.

With your purchase, you receive licensed HVAC installation support that ensures your system is installed correctly, safely, and for maximum efficiency. This helps eliminate installation guesswork and ensures your complete 1.5 ton split system performs as intended from the very first day of operation.

Green Leaf Air focuses on delivering installation-ready HVAC packages that you can buy with confidence, fully matched and optimized for real residential use. The goal is to provide a dependable Trane heating and cooling system that delivers efficient airflow, consistent temperature control, and long-lasting comfort without the complexity of sourcing separate components.
