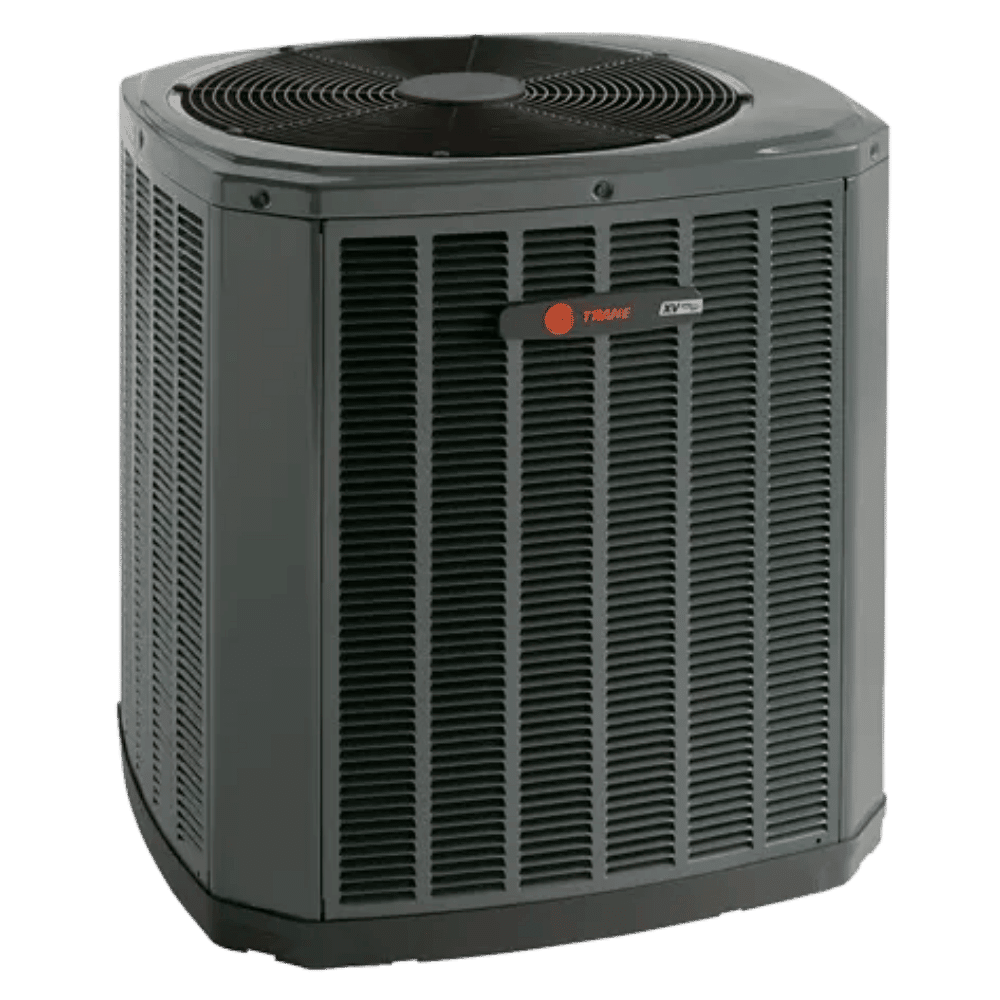

Trane 2 Ton 24,000 BTU R-454B AC Condenser 5TTR5024A1000

The Trane 5TTR5024A1000 is listed as a nominal 2-ton, 24,000 BTU, single-stage outdoor air conditioner condenser for a residential split cooling system. For shoppers searching for a Trane 2 Ton AC unit, this page covers the outdoor cooling component, not a complete HVAC system. The listing identifies R-454B refrigerant and a 208/230-volt, single-phase electrical supply. Trane’s Energy Guide for the corresponding 5TTR5024A1 model family identifies a cooling-only split system with a 14.3 SEER2 label rating and 11.7 EER2. Because the label notes that efficiency may improve depending on the installed coil, any 15.2 SEER2 rating should be connected to an exact AHRI-matched indoor combination rather than treated as an interchangeable condenser-only rating.

Trane 2 Ton AC Condenser Overview

Model 5TTR5024A1000 is the outdoor portion of a central split air-conditioning system. It must operate with properly matched indoor equipment, such as an approved evaporator coil or air handler. Trane also notes that an outdoor unit is designed to work with a matched indoor unit and that system efficiency can vary according to the indoor equipment used.

This product is a cooling-only AC condenser. It is not a heat pump, packaged HVAC unit, or complete heating and cooling system. The standalone listing does not itemize an air handler, evaporator coil, furnace, electric heater, thermostat, line set, ductwork, or installation as included components. Confirm the exact order scope before purchasing.

Buyers who need additional equipment can compare other Trane AC condensers or review a complete Trane electric AC package that includes named indoor components.

Key Features

• Nominal 2-ton cooling capacity
• Listed 24,000 BTU cooling capacity
• Single-stage cooling operation
• Outdoor condenser for a cooling-only split AC system
• R-454B refrigerant
• Exact model displayed on this listing: 5TTR5024A1000
• Official 14.3 SEER2 label rating for the corresponding 5TTR5024A1 model family
• Potential for a higher system rating when paired with an approved indoor coil, subject to exact AHRI-match verification

Trane 5TTR5024A1000 Specifications

The exact model nameplate or manufacturer submittal should be used to confirm minimum circuit ampacity, maximum breaker size, cabinet dimensions, refrigerant connection sizes, operating weight, shipping weight, required clearances, and installation data before ordering or installing the equipment.

Trane 2 Ton AC Condenser Price

Green Leaf Air currently lists the Trane 5TTR5024A1000 outdoor condenser at $4,204. This amount represents the product listing for the outdoor condenser and should not be interpreted as the price of a complete Trane 2 Ton air conditioner system.

An indoor air handler or evaporator coil, heating equipment, thermostat, refrigerant-line materials, ductwork, labor, and other installation items are not itemized as included on this standalone condenser page. Their cost and inclusion should be confirmed separately.

Green Leaf Air also lists a separate complete electric AC package using this condenser with an air handler, electric heater kit, and installation. When comparing Trane 2 Ton AC unit prices, compare the included equipment and installation scope rather than comparing a condenser-only price directly with a complete-system price.

Compatibility and Installation Note

Trane states that an outdoor unit is designed to operate with a matched indoor unit. System efficiency also varies according to the AC condenser and indoor equipment pairing. Compatibility should therefore be confirmed using the exact model numbers and an applicable AHRI certificate.

Green Leaf Air currently offers a separate package that pairs condenser 5TTR5024A1000 with the following equipment:

• Trane 5TEM4B02AC21S air handler
• Trane BAYHTR1508BRK electric heater kit

This is one seller-offered configuration. It should not be interpreted as universal compatibility or as proof of a 15.2 SEER2 AHRI match without the corresponding certificate.

Before ordering, confirm:

• Exact condenser model and suffix
• Approved indoor air handler or evaporator coil
• AHRI reference number and certified system efficiency
• R-454B refrigerant compatibility
• Electrical supply and circuit-protection requirements
• Refrigerant connection and line-size requirements
• Thermostat and control compatibility
• Equipment clearances and local code requirements
• Items included with the product and installation quote

A trained HVAC technician should complete the final equipment selection and professional AC installation.

Who Is This Trane 2 Ton AC Unit For?

This Trane 2 Ton AC condenser is intended for a residential split-system project where a professional HVAC load calculation calls for approximately 2 tons of nominal cooling and properly matched indoor equipment is available.

It may be considered for a new split AC installation or replacement project, but it should not be selected solely according to a home’s square footage. Trane recommends proper load calculation because actual cooling requirements depend on the building, climate, insulation, windows, duct system, and other installation conditions.

This product is not the appropriate standalone purchase for someone who needs:

• A heat pump that provides both cooling and compressor-based heating
• A packaged HVAC unit
• A complete system with indoor equipment already included
• A confirmed 15.2 SEER2 system without first verifying the exact AHRI match

Why Buy the Trane 5TTR5024A1000 from Green Leaf Air?

Green Leaf Air provides a dedicated product listing for model 5TTR5024A1000, a visible standalone condenser price, and product information covering its nominal capacity, refrigerant, operating type, and electrical supply. The site also lists other Trane HVAC systems and a separate complete electric package using this condenser, making it easier to compare condenser-only and complete-system purchasing options.

Before completing the order, request the exact manufacturer submittal, model-nameplate confirmation, applicable AHRI certificate, and a written list of included equipment and services. This helps ensure that the condenser, indoor equipment, efficiency rating, and installation requirements match the intended project.
