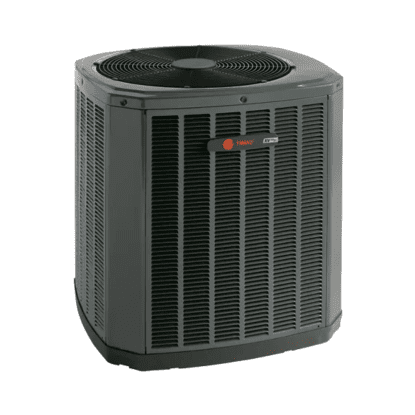

Trane 2.5 Ton 14.3 SEER2 (≈14.3-15.2 SEER2) 30000 BTU Single-Stage Heat Pump 5TWR4030A1000

Trane 2.5 Ton 14.3 SEER2 Heat Pump 5TWR4030A1000

The Trane 2.5 Ton 14.3 SEER2 30,000 BTU Single-Stage Heat Pump 5TWR4030A1000 is an outdoor split-system heat pump condenser built for heating and cooling. It is a practical option for homeowners replacing a 2.5 ton heat pump condenser or matching a new Trane heat pump with compatible indoor equipment.

This Trane 2.5 ton heat pump provides 30,000 BTU capacity with 14.3 SEER2 cooling efficiency and 7.8 HSPF2 heating performance. Depending on the approved system match, it may fall within the approximate 14.3-15.2 SEER2 range listed for this model.

The single-stage design keeps operation straightforward, while the Climatuff Scroll Compressor, Spine Fin coil, galvanized-steel louvered panels, WeatherGuard fasteners, and baked-on powder coating help support outdoor durability. If you are comparing a Trane 2.5 ton heat pump price or checking the 5TWR4030A1000 cost, make sure you confirm the indoor match, refrigerant requirements, line sizes, and installation needs before ordering.

This listing is for the outdoor heat pump condenser only. A compatible indoor air handler or coil is required to complete the full heating and cooling system.

Features of Trane 2.5 Ton 14.3 SEER2 30000 BTU Split System Single-Stage Heat Pump 5TWR4030A1000

1. 2.5 ton outdoor heat pump condenser for compatible split HVAC systems.
2. 30,000 BTU heating and cooling capacity.
3. 14.3 SEER2 efficiency rating, with approximately 14.3-15.2 SEER2 matched-system range.
4. 7.8 HSPF2 heating performance.
5. Single-stage operation for simple and dependable comfort control.
6. Climatuff Scroll Compressor supports quiet, reliable operation.
7. All-aluminum Spine Fin coil helps with outdoor heat transfer.
8. Galvanized-steel louvered panels help protect internal components.
9. WeatherGuard fasteners help resist corrosion.
10. Baked-on powder coating helps protect the cabinet finish.
11. WeatherGuard top can be added for extra outdoor protection.
12. SEET tested for Trane outdoor equipment durability standards.
13. Green Leaf Air can help review replacement fit, indoor equipment match, and installation planning before purchase.

Specifications of Trane 2.5 Ton 14.3 SEER2 30000 BTU Split System Single-Stage Heat Pump 5TWR4030A1000

Heat Pump Specifications

Specification	Details
Brand	Trane
Series	14 Single-Stage Heat Pump
Model	5TWR4030A1000
Product Type	Outdoor Split-System Heat Pump Condenser
Ton	2.5 Ton
Fan Speed	Single Speed
Stage	Single Stage
Capacity	30,000 BTU
SEER2 Rating	14.3 SEER2
Matched System Range	Approximately 14.3-15.2 SEER2
HSPF2 Rating	7.8 HSPF2
Refrigerant	R-454B

Heat Pump Electrical Data

Specification	Details
Minimum Circuit Ampacity	13 Amp
Breaker Circuit Protection Rating, Max	20 Amp
Voltage	230/208 Volts
Phase	1
Frequency	60 Hz

Heat Pump Dimensions and Line Connections

Specification	Details
Dimension	34” x 30.1” x 33”
Liquid Line Connection	3/8”
Gas Line Connection	3/4”

Compatibility and Buying Note

The Trane 5TWR4030A1000 must be matched with the correct indoor air handler or coil, thermostat, refrigerant line set, airflow setup, and electrical requirements. Before buying, confirm the model number, refrigerant match, breaker size, line connections, indoor equipment compatibility, and local installation requirements with a qualified HVAC professional.

Some supplier listings may show a nearby suffix such as 5TWR4030A1000A. Do not choose the unit by tonnage alone. Confirm the exact model suffix and approved equipment match before purchase.

Why Buy This Trane 5TWR4030A1000 from Green Leaf Air?

Buy the Trane 2.5 Ton 14.3 SEER2 Heat Pump 5TWR4030A1000 from Green Leaf Air when you want the model number, capacity, efficiency ratings, electrical data, line connections, and compatibility details clearly listed before ordering.

For homeowners comparing a Trane 2.5 ton heat pump, 2.5 ton heat pump condenser replacement, or Trane 5TWR4030A1000 price, this page helps separate the outdoor condenser details from a complete installed heat pump system. That makes it easier to understand what you are buying and what still needs to be matched.

Green Leaf Air can help review sizing, indoor equipment compatibility, replacement needs, and installation planning so you can confirm whether this Trane 2.5 ton heat pump condenser is the right fit for your home.
