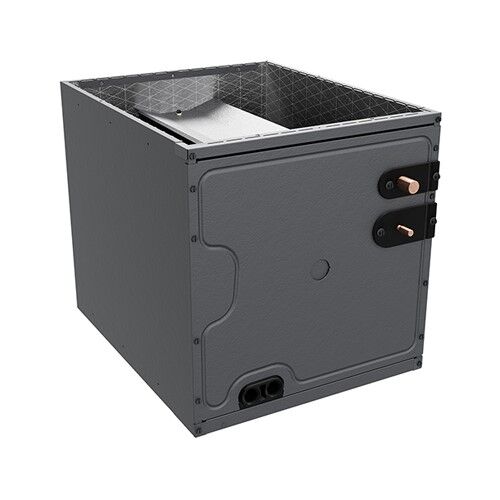

Goodman CAPTA2422B3 2 Ton Cased Evaporator Coil Overview
A matched indoor coil is an important part of any R-32 cooling system. The Goodman 2 Ton 24000 BTUh Upflow/Downflow Cased Evaporator Coil CAPTA2422B3 is built for approved R-32 air conditioner and heat pump applications that need a 2 ton cased evaporator coil with a factory-installed TXV.
Goodman designed the CAPTA2422B3 with an all-aluminum evaporator coil, painted cased cabinet, and upflow/downflow configuration. Buyers comparing a 2 ton evaporator coil, 2 ton cased coil, or Goodman 2 ton evaporator coil can use this model for compatible R-32 system replacement or new installation.
This is not a CHPF or R-410A coil. It is a Goodman CAPTA2422B3 R-32 cased A-coil with TXV, so the condenser or heat pump must be matched correctly before installation.
Features of Goodman 2 Ton 24000 BTUh Upflow/Downflow Cased Evaporator Coil CAPTA2422B3
- 2 ton cased evaporator coil for matched R-32 HVAC systems.
- 24,000 BTUh cooling capacity.
- Upflow/downflow configuration for flexible indoor installation.
- Factory-installed TXV helps regulate refrigerant flow.
- Optimized for R-32 refrigerant systems.
- All-aluminum evaporator coil supports reliable heat transfer.
- R-32 sensor designed for the lifespan of the coil.
- Painted cased cabinet with 17.5-inch width.
- Single front access panel for easier service.
- Foil-faced insulation helps reduce cabinet condensation.
- Rust-resistant thermoplastic drain pan with secondary drain connections.
- 3/8-inch liquid line connection and 3/4-inch suction line connection.
- AHRI Certified and ETL Listed.
- 10-year parts limited warranty with proper registration, based on Goodman warranty terms.
Specifications of Goodman 2 Ton 24000 BTUh Upflow/Downflow Cased Evaporator Coil CAPTA2422B3
Cased Coil Specifications
| Specification | Details |
|---|---|
| Brand | Goodman |
| Model | CAPTA2422B3 |
| Product Type | Cased Evaporator Coil |
| Coil Type | Painted Cased A-Coil |
| Configuration | Upflow/Downflow |
| Tonnage | 2 Ton |
| Capacity | 24,000 BTU |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| TXV | Factory-Installed |
| Coil Construction | All-Aluminum Evaporator Coil |
| Certifications | AHRI Certified, ETL Listed |
Cased Coil Dimensions
| Specification | Details |
|---|---|
| Liquid Connection | 3/8 Inches |
| Suction Connection | 3/4 Inches |
| Coil Height | 22 Inches |
| Coil Width | 17.5 Inches |
| Coil Depth | 21 Inches |
Cased Coil Weight
| Specification | Details |
|---|---|
| Coil Weight | 40 Pounds |
| Coil Shipping Weight | 40 Pounds |
Why Buy Goodman CAPTA2422B3 from Green Leaf Air?
Buy the Goodman CAPTA2422B3 2 ton evaporator coil from Green Leaf Air when you want the model number, R-32 compatibility, cabinet size, line connections, and coil specs clearly listed before checkout. Since this coil must match the right R-32 condenser or heat pump, checking the fit before buying matters.
Green Leaf Air makes it easier to compare this Goodman 2 Ton 24000 BTUh Upflow/Downflow Cased Evaporator Coil for replacement or new HVAC system installation. If you are shopping for CAPTA2422B3, CAPTA2422B3 specs, 2 ton Goodman coil, or a Goodman 2 ton evaporator coil, this page gives you the key product details in one place.
You can order the coil online, review the specifications before checkout, and contact Green Leaf Air if you need help confirming whether this R-32 TXV coil is the right match for your system.
Compatibility and Installation Note
The Goodman CAPTA2422B3 is designed for matched R-32 air conditioner and heat pump systems. Do not use this coil as a direct replacement for an older R-410A or R-22 coil unless your licensed HVAC installer confirms the full system match.
Before ordering, confirm the condenser or heat pump model, furnace or air handler cabinet width, coil orientation, drain setup, line-set size, refrigerant type, and installation requirements. Proper installation by a licensed HVAC professional helps protect system performance, safety, and warranty coverage.
If you are comparing a Goodman 2 ton condenser and coil setup, remember that this listing is for the indoor cased evaporator coil only. A compatible outdoor condenser or heat pump is required to complete the system.
