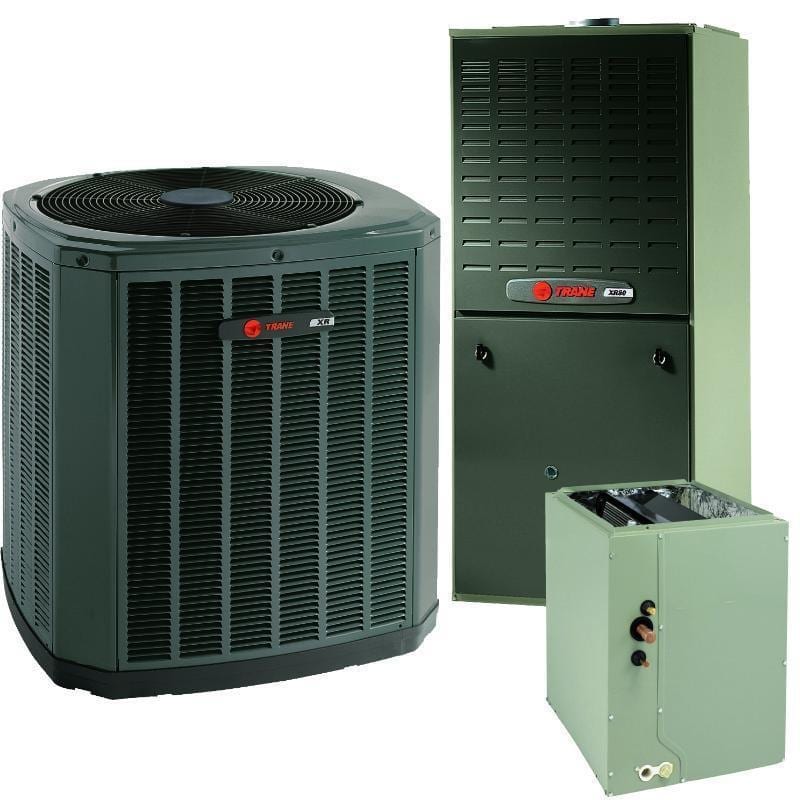

Trane 2 Ton 16 SEER2 24200 BTUh Two Stage 80% Gas System | XR16 Series 24000 BTUh Air Conditioner Condenser | XV80 60000 BTUh Gas Furnace | 4TXC 30000 BTUh Cased Coil |R-410a Refrigerant
As an efficient heating and air conditioning solution, this 2 Ton 16 SEER2 24200 BTUh 80% Two-Stage Gas System from Trane is a champ. This gas heating system has three major components –
(1) Trane 2 Ton 16.2 SEER2 XR16 24000 BTUh 2-Stage AC Condenser 4TTR6024N1000, (2) Trane 60000 BTUh 80% AFUE XV80 2-Stage Gas Furnace TUD2B060A9V3V & (3) Trane 1.5-3 Ton 30000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCB003DS3HC.
Specialty of Trane 2 Ton 16 SEER2 24200 BTUh 80% AFUE Gas System
1. Durable Built
This 3 Ton gas heating HVAC system was rigorously tested and tortured to ensure it holds itself even in the toughest situation.
2. Quiet In Operation
The whole HVAC system works surprisingly silently. You won’t even notice if it’s operating or not.
3. Fresh, Clean & Healthy Air
By adding Trane CleanEffects™ to your HVAC system, you can ensure a filtration system that doesn’t allow pollen, dust, and other unwanted particles inside your home, thus ensuring healthy, fresh, and clean airflow inside your home.
Trane 2 Ton 16 SEER2 Gas System | |
| Nominal Capacity | 2 Ton |
| SEER2 Rating | 16 SEER2 |
| EER2 Rating | 12 EER2 |
| Capacity | 24200 BTUh |
| Outdoor AC Condenser Unit | Trane 4TTR6024N1000 |
| Indoor Gas Furnace Unit | Trane TUD2B060A9V3V |
| Cased Coil Unit | Trane 4TXCB003DS3HC |
| AHRI | 208771670 |
1. Trane 2 Ton 16.2 SEER2 XR16 24000 BTUh 2-Stage AC Condenser 4TTR6024N1000
- Add-on CleanEffects® Whole Air Home Cleaner filters dirt, dust, and other contaminants
- Better and upgraded fan motor
- Spine Fin Coil
- DuraTuff Non-Corrosive Base Pan
- 2-Stage Climatuff Scroll Compressor for quiet operation and cost-efficiency
- Quick-Sess Cabinet with full coil protection
- Corrosion-Resistant Weatherguard Fasteners
- Premium Grey Finish for a pleasant look & feel
- Premium materials for construction to ensure durability
- Full-Side Louvered Panels for Longevity
AC Condenser Specifications | |
| Brand | Trane |
| Series | XR16 Series |
| Model | 4TTR6024N1000 |
| Ton | 2 Ton |
| Capacity | 24000 BTUh |
| SEER2 Rating | 16.2 SEER2 |
| Minimum Circuity Ampacity | 13.4 Amp |
| Breaker Circuit Prot. Rtg. (Max) | 20 Amp |
| Voltage | 230/208 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Dimension | 41-1/8” x 34-1/4” x 37-1/4” |
| Liquid Line Connection | 3/8” |
| Gas Line Connection | 3/4″ |
| ENERGY STAR® qualified | Yes |

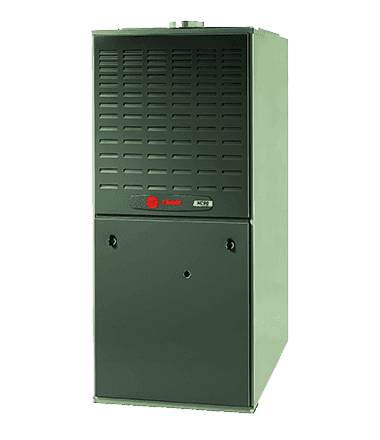

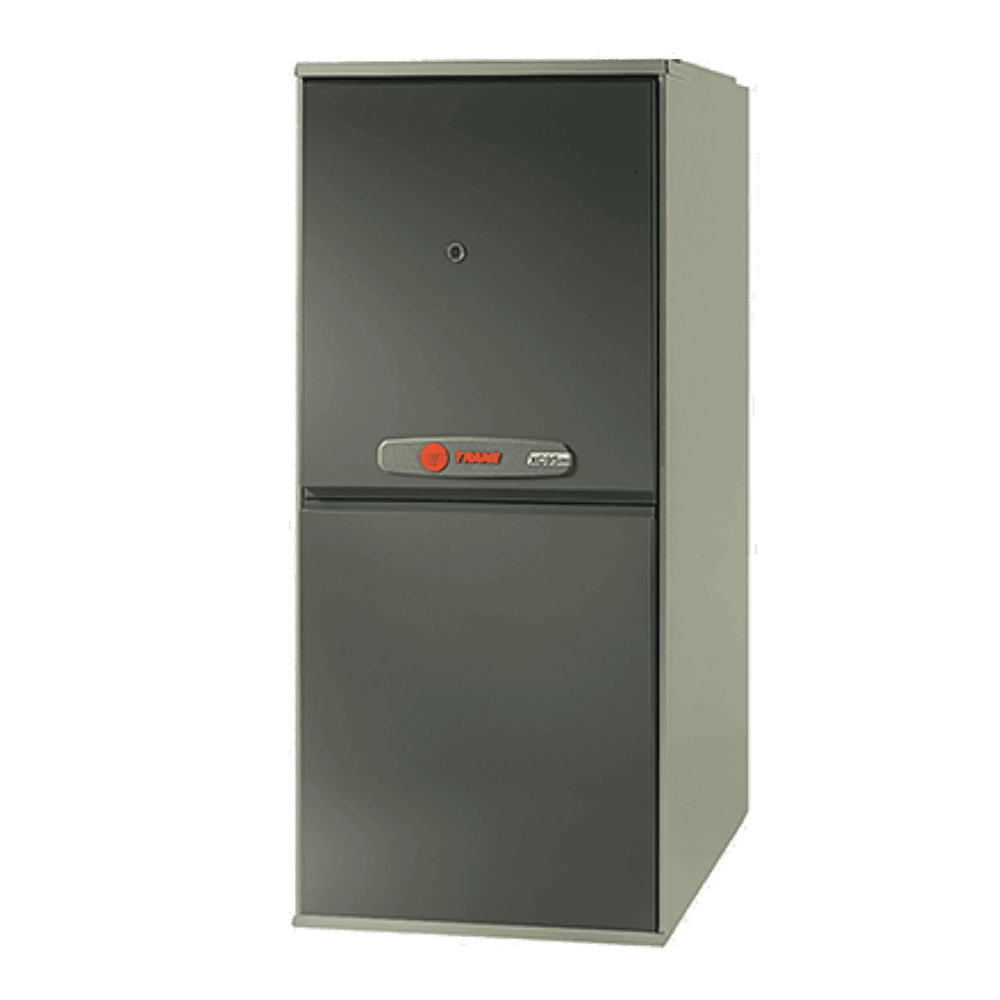

2. Trane 60000 BTUh 80% AFUE XV80 2-Stage Gas Furnace TUD2B060A9V3V
- Insulated cabinet for quiet operation
- Pre-painted galvanized steel cabinet for protection against corrosion
- Self-diagnostic microelectronic controller for reliable operation
- 24-Volt fuse for control protection
- Silicon Nitride Hot Surface Igniter that provides a reliable ignition system to extend
- Heavy Steel Insulated Cabinet for durability
- Variable Speed blower motor for super-efficient air flow & circulation
- Two-Stage gas heating for indoor comfort
- Multi-Port In-Shot Burners Shape up the flame cone properly to ensure less fuel consumption
- Tubular Heat Exchanger for efficient heat exchange
Gas Furnace Specifications | |
| Brand | Trane |
| Series | XV80 Series |
| Model | TUD2B060A9V3V |
| Heating Capacity | 60000 BTUh |
| AFUE | 80% AFUE |
| Stages | Two Stage |
| Dimension | 40” x 17.5” x 28” |

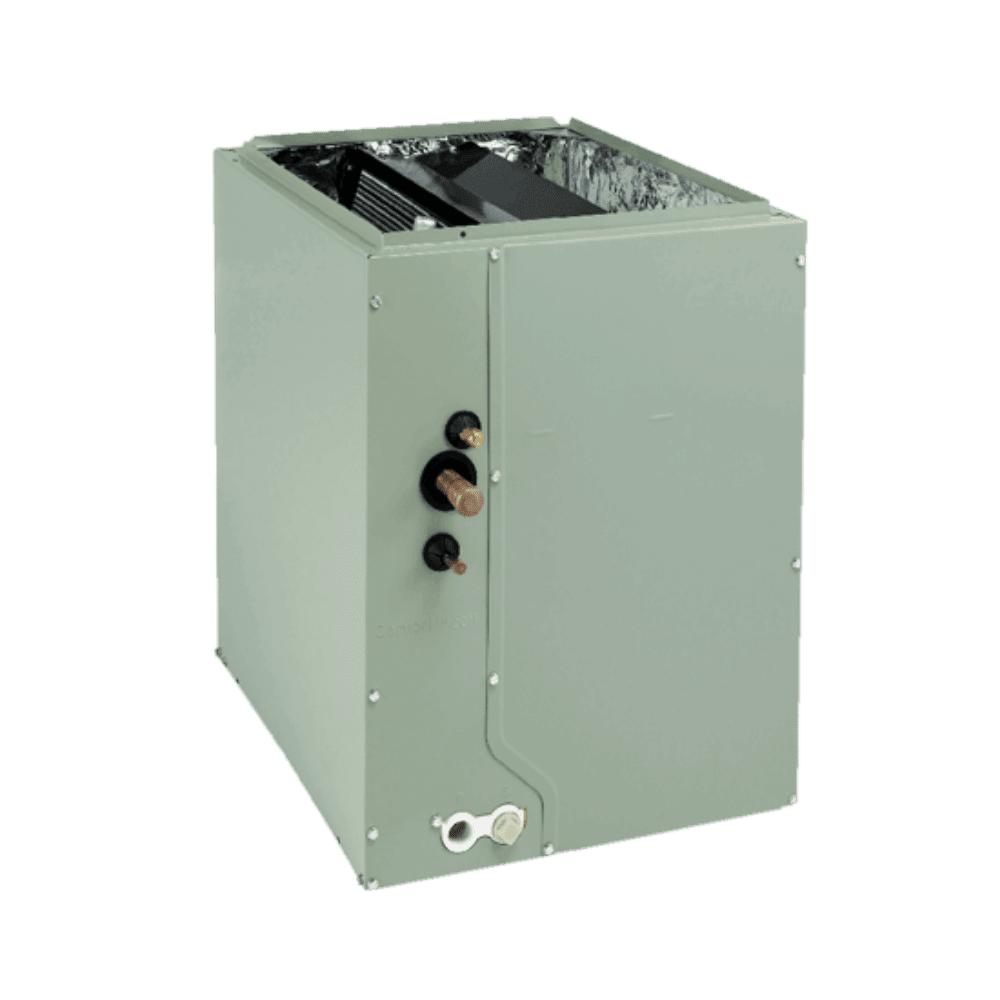

3. Trane 2 Ton 30000 BTUh Downflow/Horizontal/Upflow Cased Coil 4TXCB003DS3HC
- Two-way noncorrosive drain pan prevents water clog
- Resistance against Rust & Corrosion
- All-aluminum Comfort™ coil to ensure minimum leaks
- A durable painted finish for corrosion and rust resistance
- Easy to clean Comfort™ Coil
- 100% foil-backed insulation facilitates quiet operation
Cased Coil Specifications | |
| Brand | Trane |
| Series | 4TXC Series |
| Model | 4TXCB003DS3HC |
| Tonnage | 1.5-3 Ton |
| Capacity | 30000 BTUh |
| Configuration | Downflow/Horizontal Left/Horizontal Right/Upflow |
