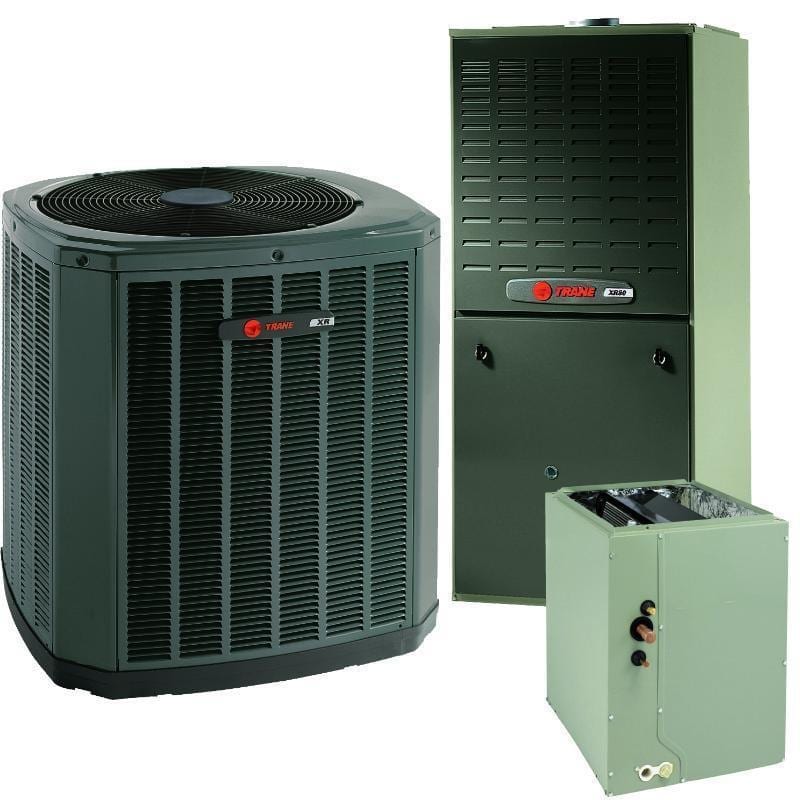

Trane 2.5 Ton 14.3 SEER2 Single-Stage AC System, 80% AFUE 60000 BTU Gas Furnace, Multi-Positional Coil, R-454B Gas System [with Install]
Trane 2.5 Ton 14.3 SEER2 (≈14.3 SEER2) Single-Stage Gas System includes (1) Trane 2.5 Ton 14.3 SEER2 (≈14.3 SEER2) Single-Stage 30000 BTU R-454B Air Conditioner Condenser 5TTR4030A1000, (2) Trane 60000 BTU S8X1 80% AFUE Single-Stage Gas Furnace S8X1B060M4PSC & (3) Trane 2-4 Ton 24000-48000 BTU Downflow/Horizontal/Upflow R-454B Multi-Positional Cased Coil 5TXCB006AS3HC.
Trane 2.5 Ton 14.3 SEER2 Gas System |
| Nominal Capacity | 2.5 Ton |
| SEER2 Rating | 14.3 SEER2 |
| EER2 Rating | 11.7 EER2 |
| Capacity | 30000 BTUh |
| Outdoor AC Condenser Unit | Trane 5TTR4030A1000 |
| Indoor Gas Furnace Unit | Trane S8X1B060M4PSC |
| Cased Coil Unit | Trane 5TXCB006AS3HC |
| AHRI | 208154707 |
1. Trane 2.5 Ton 14.3 SEER2 30000 BTUh AC Condenser 5TTR4030A1000
- Quick-Sess Cabinet with Full Coil Protection
- Climatuff Scroll Compressor for quiet operation and cost-efficiency
- Premium Grey Finish
- The materials used for the construction are premium in quality, and thus, they last much longer
- Full-Side Louvered Panels
- DuraTuff Non-Corrosive Base Pan
- Corrosion-Resistant Weatherguard Fasteners
- Spine Fin Coil
AC Condenser Specifications |
| Brand | Trane |
| Series | 14 Single-Stage Air Conditione |
| Model | 5TTR4030A1000 |
| Capacity | 30000 BTUh |
| SEER2 Rating | 14.3 SEER2 |
| Minimum Circuity Ampacity | 16 Amp |
| Breaker Circuit Prot. Rtg. (Max) | 25 Amp |
| Voltage | 230/208 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Dimension | 34” x 30.1” x 33” |
| Liquid Line Connection | 3/8” |
| Gas Line Connection | 3/4″ |
| ENERGY STAR® qualified | Yes |
2. Trane S8X1 Series 60000 BTU 80% AFUE Single-Stage Gas Furnace S8X1B060M4PSC
- Silicon Nitride Hot Surface Igniter that provides a reliable ignition system to extend
- Formed Steel Door with Smoked Acrylic View Windows offers an attractive appearance
- Multi-Port In-Shot Burners Shape up the flame cone properly to provide maximum efficiency by using less fuel
- The high-efficiency Electronically Commutated Motor (ECM) makes the system cost-efficient
- Aluminized Steel Heat Exchanger for efficient heat exchange & resists corrosion
- Heavy Steel Insulated Cabinet for durability
- Patented Vortica® II Blower works quietly while making the heating unit efficient
Gas Furnace Specifications |
| Brand | Trane |
| Series | S8X1 |
| Model | S8X1B060M4PSC |
| Capacity | 60000 BTUh |
| AFUE | 80% |
| Stages | Single Stage |
| Dimension | 34” x 17.5” x 28.75” |
| ENERGY STAR® qualified | No |
3. Trane 2-4 Ton 24000-48000 BTUh Downflow/Horizontal Left/Horizontal Right/Upflow Cased Coil 5TXCB006AS3HC
- The durable painted finish increases protection from corrosion and rust
- All-aluminum Comfort™ coil reduces leaks
- Comfort™ Coils are easy to clean
- Rust and corrosion resistant
- Two-way noncorrosive drain pan doesn’t let water to stand
- 100% foil-backed insulation for easy cleaning and quiet operation
Cased Coil Specifications |
| Brand | Trane |
| Series | 5TXC |
| Model | 5TXCB006AS3HC |
| Tonnage | 2-4 Ton |
| Capacity | 24000-48000 BTUh |
| Configuration | Downflow/Horizontal Left/Horizontal Right/Upflow |
